Magnetic cable connector square 5pin male and female electrical pogo pin

Наименование марки:	UPE
Номер модели:	VID0063A / VIC0750B
МОК:	5000
цена:	$1-$5
Детали упаковки:	Сумки PE
Условия оплаты:	Т/Т

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Китай

Сертификация:

ISO9002

Документ:

VID0063A.pdf

Имя:

Магнитный кабельный разъем

Материал:

THN, латунь, SUS304, NdFeB N52

Сила пружины:

80 грамм±20 грамм

Рабочий аист:

1,0 мм

Текущий:

3.0A

Volatge:

12 В

Магнитная сила:

550 г

Механическая жизнь:

50000 циклов минут.

Контактное сопротивление:

50mΩ максимум (PIN)

Тест на соленый спрей:

48 часов

Поставка способности:

5KPCS/день

Выделить:

magnetic cable connector 5pin pogo pin

square magnetic connector male female

electrical pogo pin magnetic connector

Описание продукта

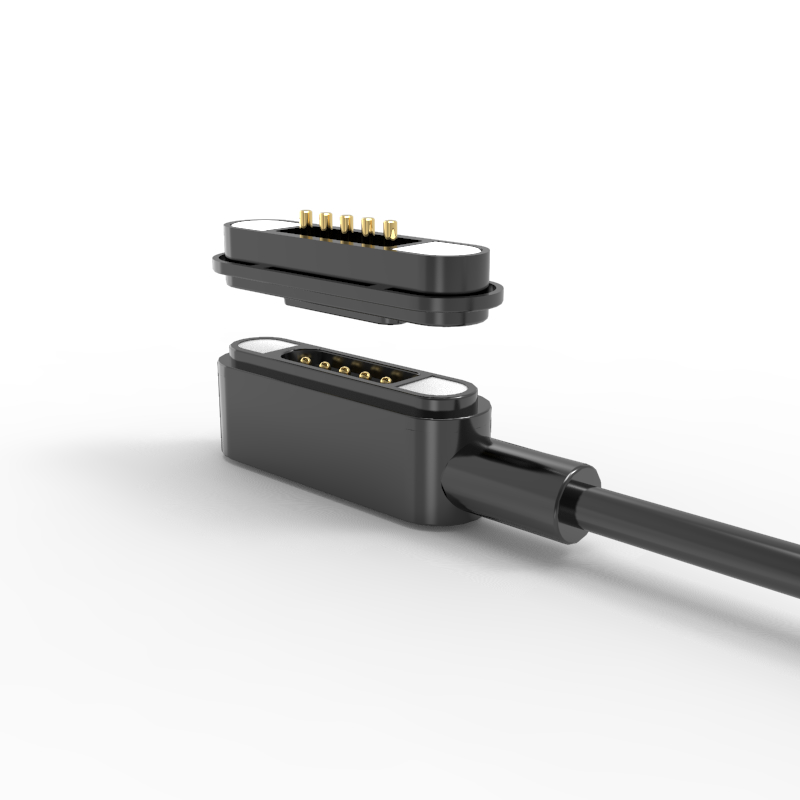

Magnetic Cable Connector Square 5Pin Male and Female Electrical Pogo Pin

Magnetic cable connector square 5pin male and female electrical pogo pin

Magnetic Cable Connector

1. Materials & Construction

Pogo Pin: Brass, gold-plated surface (ensures low contact resistance & corrosion resistance).
USB Connector: Stainless steel shell (USB 2.0) for durability and shielding.
Housing: HTN (High-Temperature Nylon) + 30% filler, UL94 V-0 rated (flame-retardant, withstands high temps).
Outer Mold (Joint): Black TPE 80A (flexible, abrasion-resistant thermoplastic elastomer).
Magnet: Neodymium Iron Boron (NdFeB) permanent magnet (high-performance, strong adhesion).
Cable: OD 3.5mm, 4-core
- Red & Black: 65 strands × 0.08mm (tin-plated copper, higher current capacity).
- White & Green: 16 strands × 0.08mm (tin-plated copper, likely for data/signal).
Insulation: Black TPE covering (flexible and durable).

2. Mechanical Properties

Spring Force: 80g ± 20g at 1.0mm working height (ensures stable contact pressure).
Magnetic Adhesion Force: >550G (secure male-female docking).
Service Life: 50,000+ cycles (high durability).
Safety Features: Anti-short-circuit design and polarity markings for correct alignment.

3. Electrical Properties

Rated Voltage: 12V DC.
Current Ratings:
- Continuous: 3.0A.
- Peak (Momentary): 4.0A max.
Contact Resistance: ≤50mΩ (low power loss).
Compliance: RoHS & REACH (environmentally friendly).

Female Magnetic Connector

Materials:

The yellow metal needle part is gold-plated with brass surface.
The plastic material is HTN+30%UL94 V-0 black, which can withstand high temperatures.
The magnet adopts high-performance permanent magnet neodymium iron.

Electrical Properties:

Reference voltage: 12V.
Continuous working current: 3.0A.
Contact static impedance of the needle: 50mΩ Max (PIN).
High voltage test: AC1000V 0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.

Product Introduction and Explanation:

The product adopts environmental protection materials, ROHS, REACH.
The attraction force of the magnetic male and female docking is more than 600G.
Product anti-short-circuit structure design.
Polarity and electrical direction are clearly identified.
The magnet can be coated with epoxy resin, and the salt spray test can pass 48 hours.

Product Application Explanation (not limited to the following):

The PCB board can be soldered with a plug-in.
After soldering, the board can be molded and coated.
The PCB board can be connected with a terminal.
The mold can be molding and injection molding.
The wire can be directly soldered.

5Pin Magnetic Connectors Parameter:

Name	5Pin Magnetic connector
Type	DIP
Pin	5pin or customized
Pitch	2.20mm
Pogo pin	Brass
Housing	Black HTN+30%GF UL94 V-0
Magnet	NdFeB N52 Plating Ni
Magetic force	550G
Spring force	80g±20g, at 1.0mm working storke.
Mechanical life	50000 cycle Min.
Current	3.0A
Voltage	DC 12V
Contact resistance	50mΩ Max (PIN).
High voltage test	AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.
Salt spray test	48H
Layout tolerance	±0.05mm
Certification	ROHS or REACH compliant product
Test	100% open and short test

5Pin Male Cable Connector Technical Drawing (Key Dimensions):

5Pin Female Magnetic Connector Technical Drawing (Key Dimensions):

Advantages of Magnetic Connector

Humanize design of automatic adsorption connection experience.
Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device.
Life time: up to 100,000-200,000 cycle.
Waterproof design: the female end of the device can be dustproof and waterproof (IPX8).
Fast charging time: 5A-10A magnet connector design withstands large current transmission.
The appearance of the magnetic connector can be matched according to the design of the customer's application device.
Product anti-short circuit structure design and foolproof.
Realize high frequency signal transmission, can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission.

Magnetic Connector Products Application

Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones, Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection.
Medical equipment, wireless equipment, data communications equipment, telecommunication equipment, Automation and industrial equipment, audio-visual equipment.
Aviation, aerospace electronic, military communication.
Automotive, car navigation, test and measurement equipment.
Consumer Electronics (mobile phones, tablet computers, Bluetooth headsets, camera, watch, portable consumer electronic products and many other electronic fields.)

How to Place the Order

You send us drawing or sample.
Our professional engineering team conducts the assessment.
You confirm the drawing and we make the sample to send you.
You test the sample and approved, then place an order and pay 50% deposit.
We start to make the product.
When the goods is done, we take photos for your check and you then pay the balance.
We deliver the products to you with DHL, TNT, UPS, Fedex.

Order Details

Payment Term: T/T, 50% Deposit, 50% Balance.
Payment method: T/T, PayPal, OCBC.
Sample Lead Time: Inventory sample 2-3 Working day/customized sample 5-7 Working day.
Production Lead Time: 10-15 Working day.
Made For: America, Europe, Asia, South African.
Trade Term: EXW.
Freight: Air, Sea, Express.
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable.

Any question, please send to union@upetech.net
