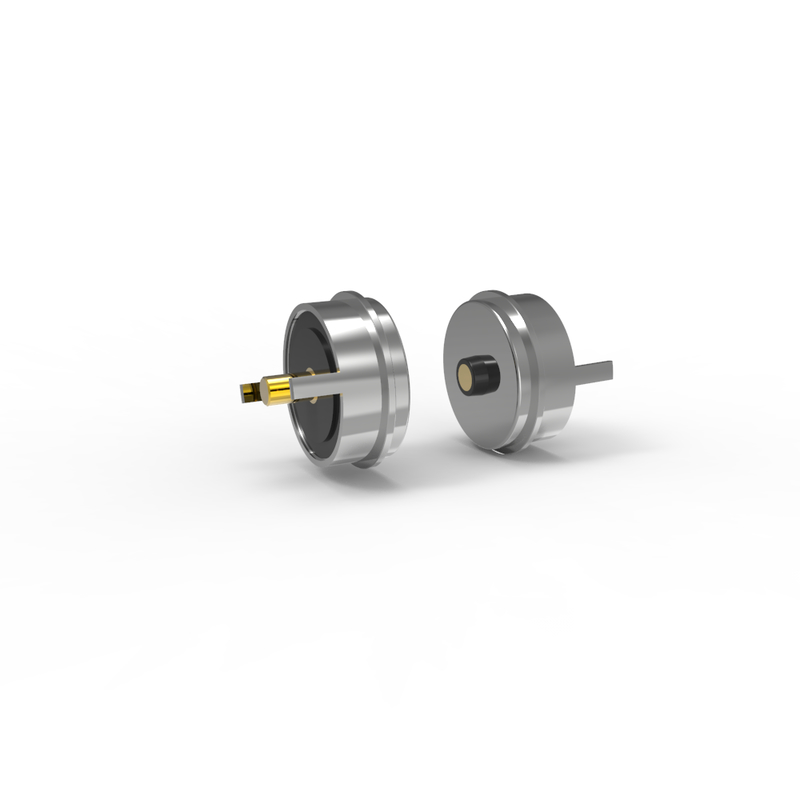

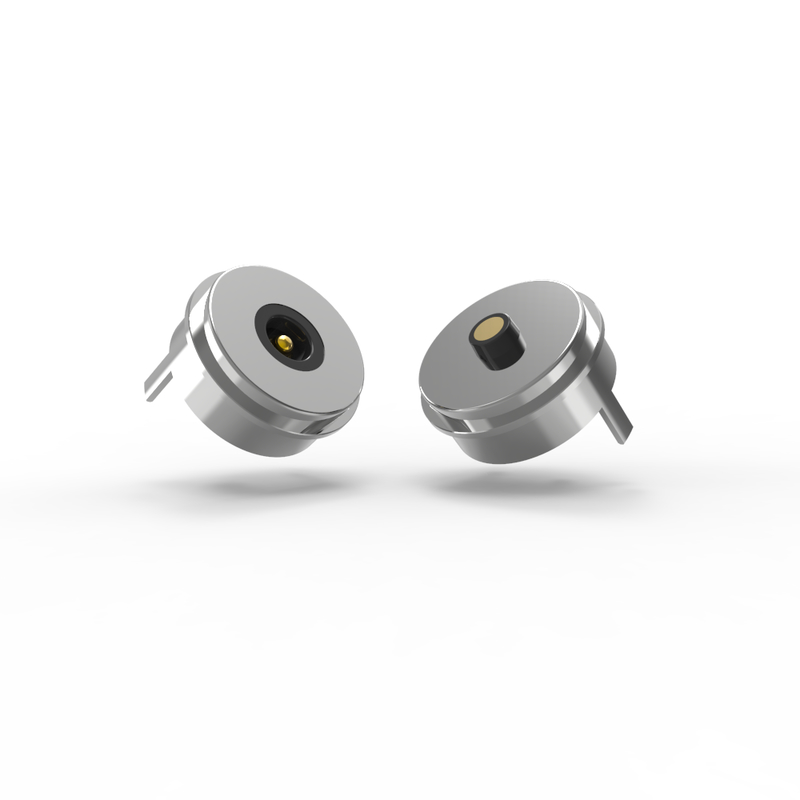

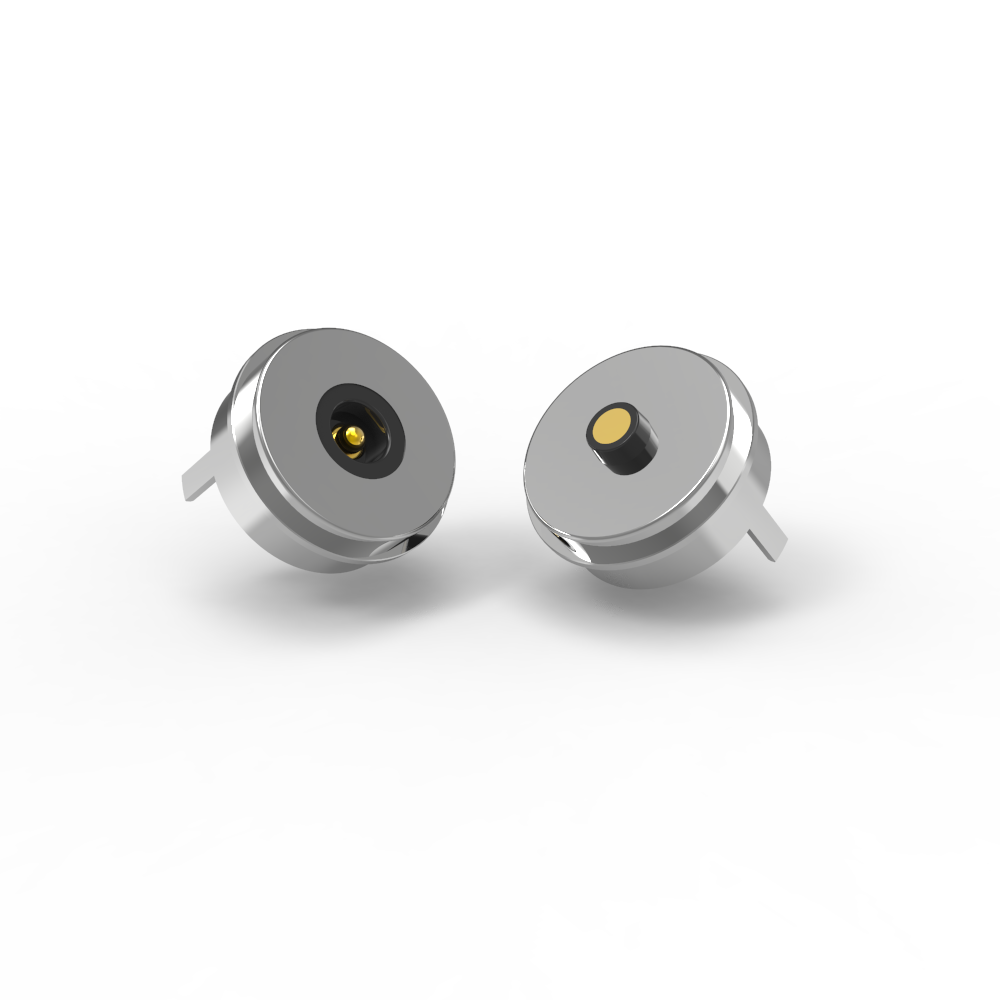

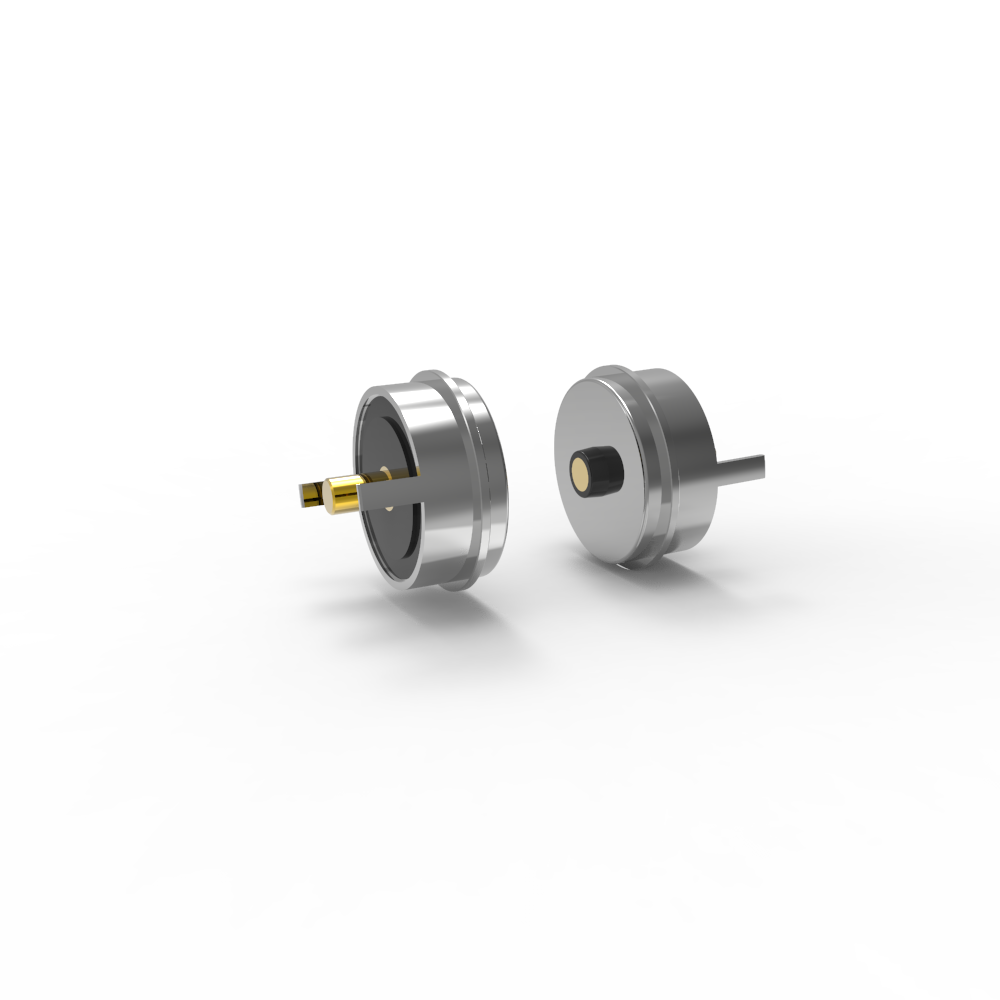

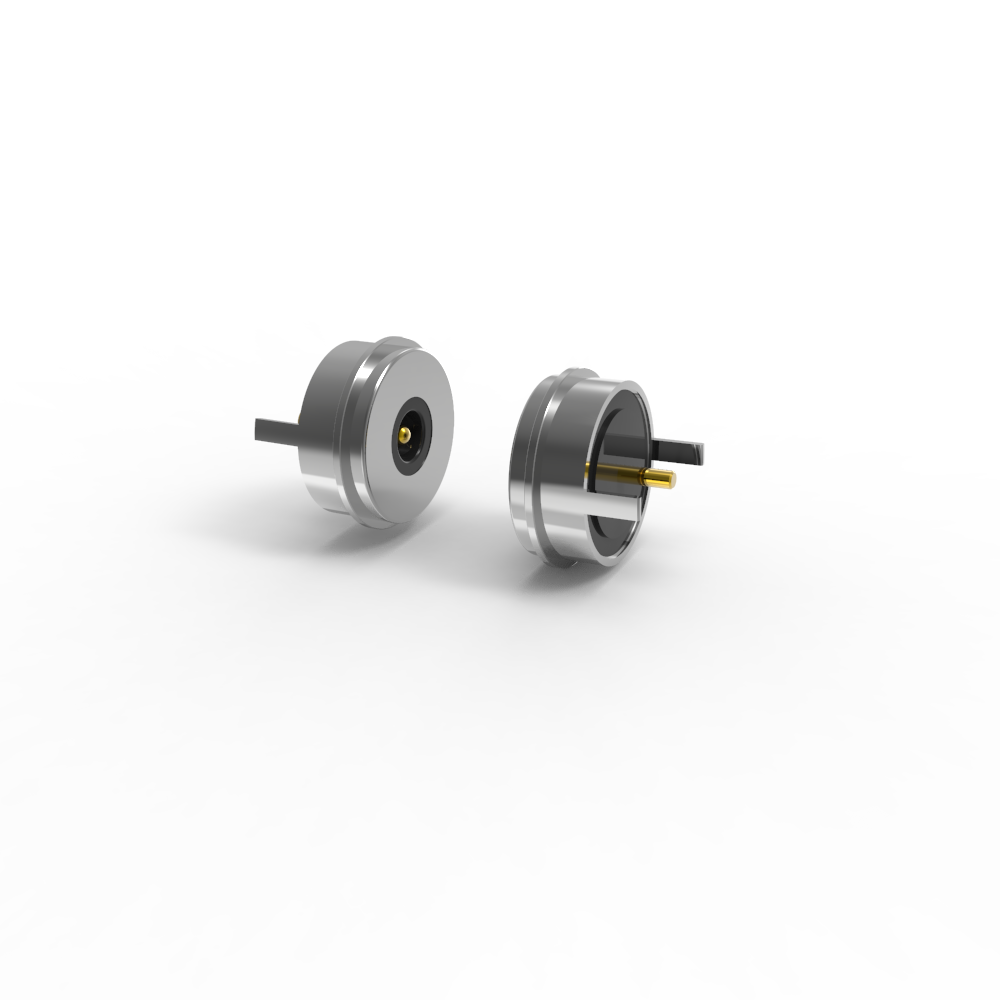

Dia 10.0mm male and female 2pin round magnetic pogo pin connector with 5A current

Dia 10.0mm male and female 2pin round magnetic pogo pin connector with 5A current.

UPE is professional magnetic connector & magnetic cable connector manufacturer.

We have our own professional designers to meet any of your requirements and provide magnetic connector customization service. Different magnetic pogo pin connector products and solutions can be designed according to different customer needs.

Magnetic connector all materials complies RoHS & REACH Compliance.

All the magnetic connector passed 100% Short & Open Circuit Testing.

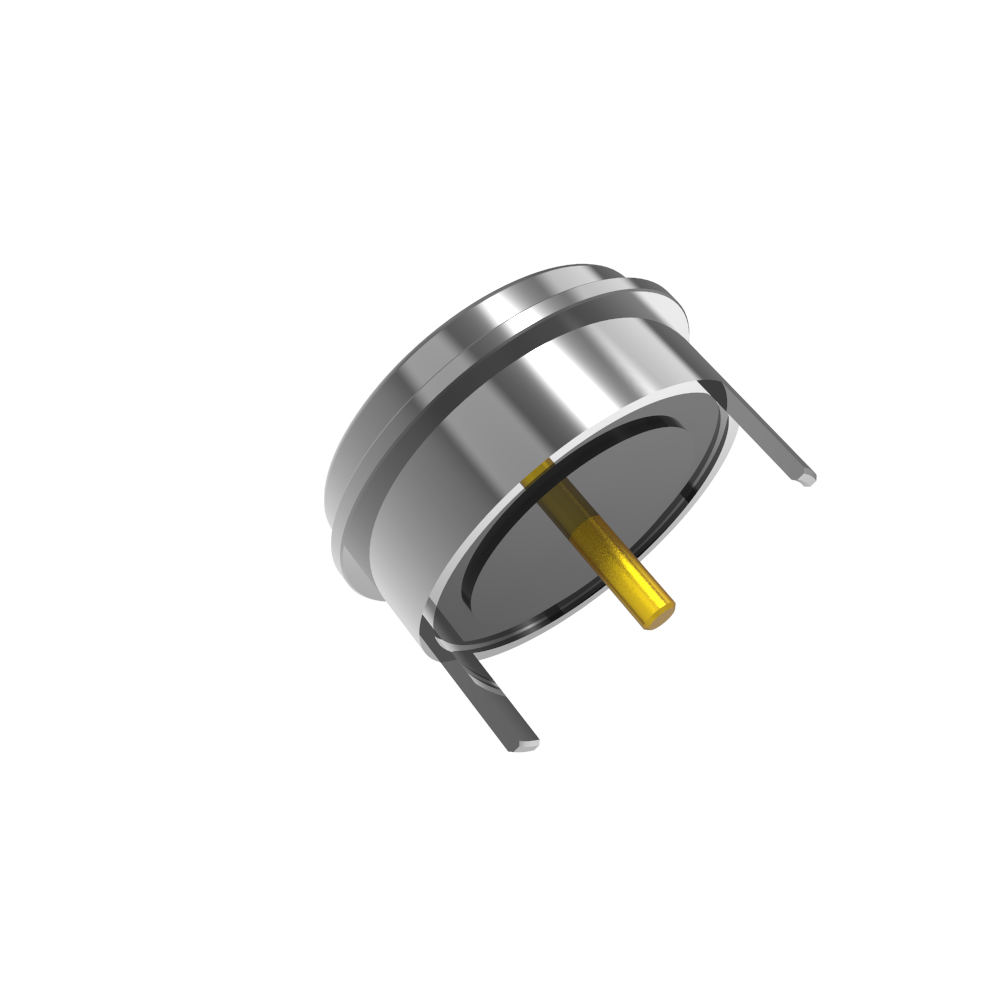

Male Magnetic Connector Part

...Material:

Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;
Barrel:Lead-free C6801 ,plating 5U"Min Au over 60~100U"Ni;
Spring:SUS 304 plating 1U"Au;
Housing: Black HTN+30%GF UL94 V-0;
Shell: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
...Mechanical:
Spring force:80g±20g,at 1.0mm working stroke.
Full storke:1.2mm.
Mechanical life:50000 cycle Min.
...Electrical:
Voltage:12.0 V.
Current:5.0 A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test:48H.
..& Key inspection dimension .
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

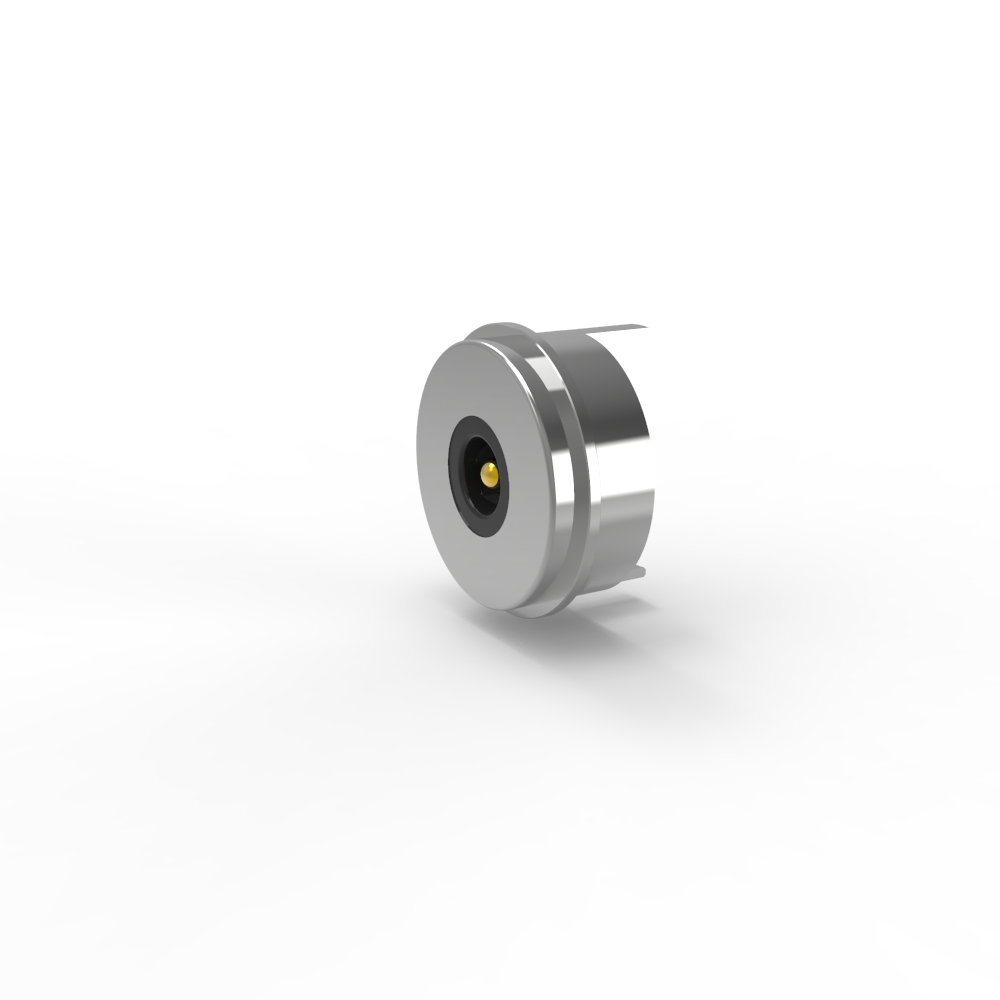

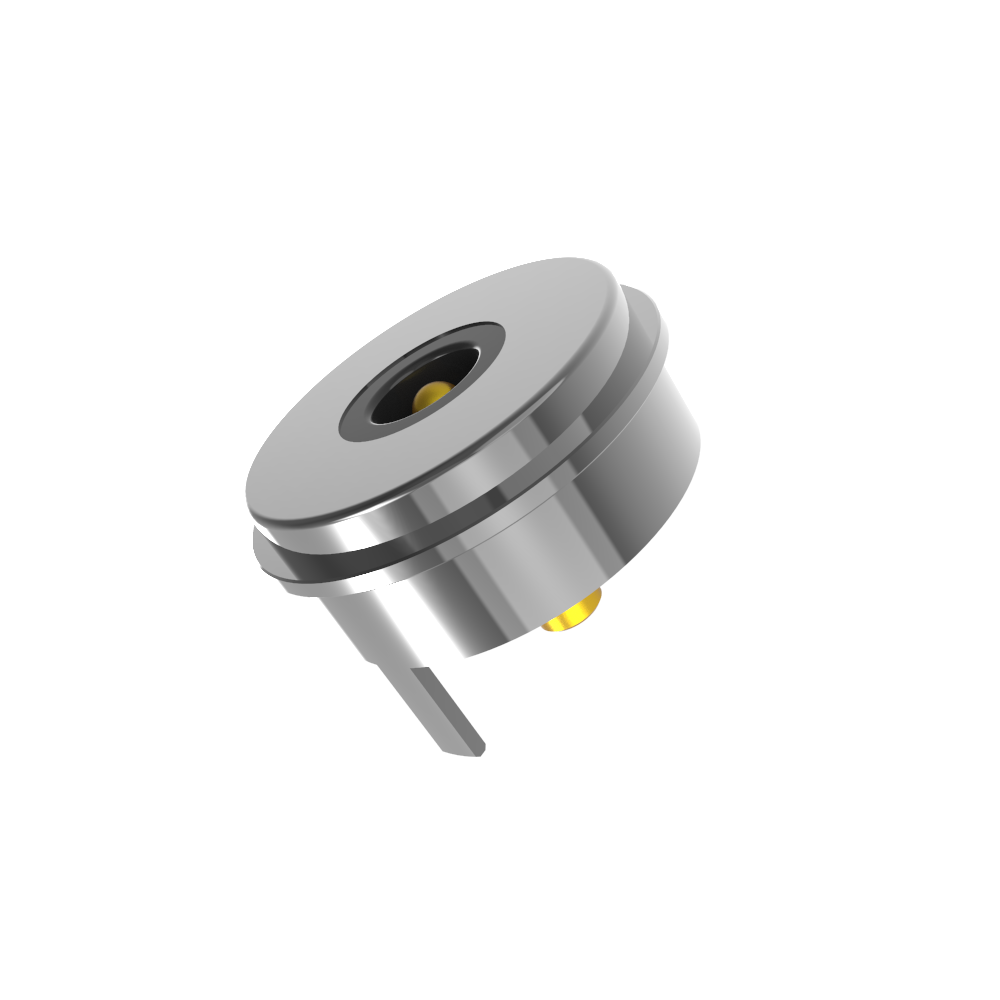

Female Magnetic Connector Part

...Materials :
PIN:Lead-free C6801 ,plating 5U"Min Au over 60~100U"Ni;
Housing: Black HTN+30%GF UL94 V-0;
Shell: Lead-freeC6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
....Electrical:
Voltage:12.0 V.
Current:5.0 A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test:48H.
...& Key inspection dimension .
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

DC Magnetic  Connectors Parameter:

Circular Male Magnetic Connector Technical Drawing

Circular Female Magnetic Connector Technical Drawing

PCB Layout:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic connector products application:

Why UPE shall be your partner?

1. Professional customization service

Benefit:Tailors solutions to your exact specifications, ensuring the product fits your unique needs without compromises. Ideal for niche applications or innovative projects.

2. Fast sample production capability

Benefit: Accelerates your R&D cycle and time-to-market. Rapid prototyping allows for quick iterations, reducing development costs and beating competitors.

3. Strict quality control system

Benefit: Guarantees consistency and reliability. Minimizes defects, returns, and costly recalls, protecting your brand reputation.

4. Processing with imported components

Benefit: Enhances product performance and longevity. High-grade materials (e.g., German/Japanese components) ensure durability and compliance with international standards.

5. High-precision test equipment

Benefit: Validates product accuracy and safety. Critical for industries like aerospace, medical devices, or automotive where tolerances are non-negotiable.

6. Reasonable cost control procedures

Benefit: Optimizes your budget without sacrificing quality. Efficient resource management translates to competitive pricing for you.

7. Product environmental standards

Benefit: Ensures compliance with global regulations (e.g., RoHS, REACH). Future-proofs your supply chain and appeals to eco-conscious markets.

How to Place Your Magnetic Connector Order with UPE

1. Submit Your Requirements

Contact our sales team via:

Email: [union@upetech.net]

Phone: [+86 13434524996]

Online Form: [www.pogopinsconnector.com]

Provide details:

✔ Application (e.g., medical, automotive, consumer electronics)

✔ Connector type (e.g., magnetic pogo pin, charging cable)

✔ Specifications (voltage, current, size, waterproof rating, etc.)

✔ Quantity & lead time

2. Get a Custom Solution (If Needed)

Our engineers will review your needs and propose a custom design (if required).

We’ll share 3D models, samples, or technical drawings for approval.

Payment Term:

50% Deposit (Paid upfront): Covers production costs (materials, labor).

50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.

Payment method:

T/T (Bank Transfer),PayPal ,OCBC Bank

Recommendation:

Use PayPal for samples (safer).

Use T/T for bulk orders (lower fees).

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
